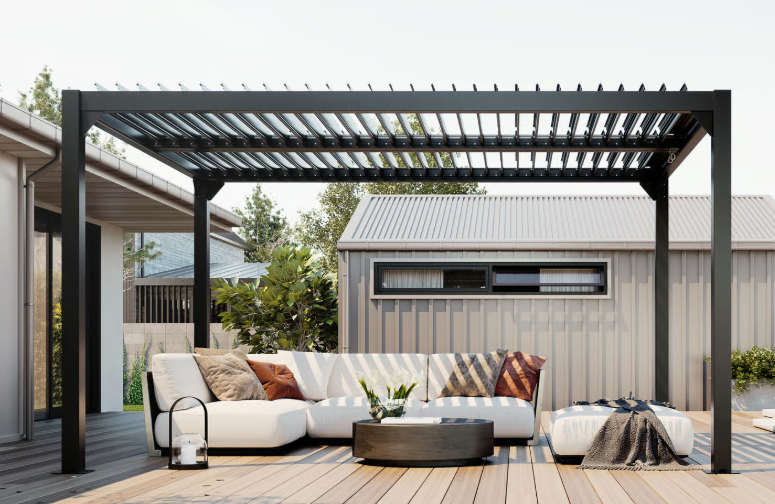

Louvre Roof System 3m x 4m

Flat Pack Zach is proud to partner with Trade Tested to provide a supply and install option help take the hassle out of upgrading your backyard.

We can supply, deliver and professionally install your new louvre pergola all for one fixed price.

FEATURES
• Free-standing 3m x 4m louvre roof system
• Create your ideal all-weather outdoor living space
• Twin, adjustable louvre banks
• Fully-integrated gutter system with internal downpipes
• Gear crank system for infinite adjustment
• Rust-proof powder coated aluminium construction
• Sleek charcoal finish & architectural style looks amazing anywhere
• Straightforward DIY assembly
• Centre crank model
• 5 Year Trade Tested Warranty

SPECIFICATIONS
Total dimensions: W 2.966m x D 3.958m x H 2.3m
Frame material: Aluminium, 2.0mm (beam) / 1.6mm (post)
Louvre panel material: Aluminium, 1.4mm
Top beam dimensions (each): W 45mm (horizontal) x H 120mm (vertical)
Colours: Charcoal, White
Post dimensions: 230cm x 10cm x 10cm
Louvre dimensions: L 135.4cm x W 14.5cm
Ground plate dimensions: 16cm x 16cm
Weight net/gross: 154.5/177.5kg
Carton dimensions: Carton 1 – 247cm x 23.5cm x 23.5cm, 29.6kg. Carton 2 – 384.5cm x 28cm x 25.5cm, 65.7kg. Carton 3 - 146cm x 38cm x 25cm, 40.3kg. Carton 4 - 146cm x 38cm x 25cm, 40.3kg.

Prices are based on installation onto an existing concrete patio within Christchurch, Rolleston or Rangiora.

Deck installations may incur an additional fee depending on the location and accessibility of the sub-deck framing.
